Chemically Bonded Compound Series (CBC)

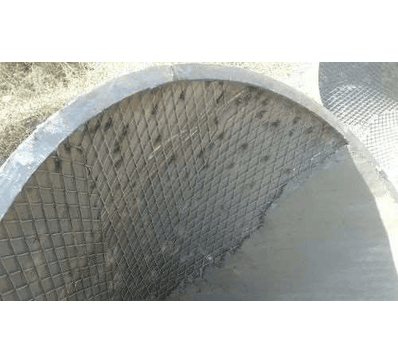

CBC one compound mortar series is trowel onto an anchoring expended mesh.
CBC is a mortar bonded product range; contains extremely hard sintered compounds like Alumina and Silicon Carbide as fillers in CBCTM Linings. CBCTM contains micro and nano-components to ensure high degree of densification by close the pores of the mortar element.
The high hardness fillers of sintered compounds incorporated in the CBCTM matrix offer extremely good sliding wear resistance. CBCTM has a hard sintered Alumina/Bauxite/Silicon Carbide base. CBCTM compounds are available with a variety of bonding agents, depending on the application.

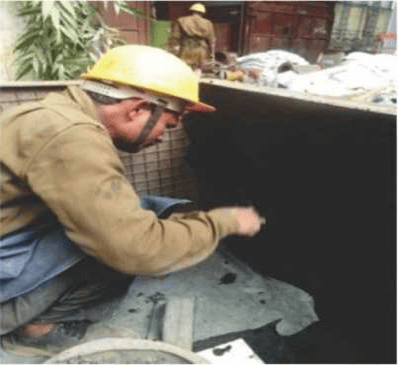

CBC has an advantage for all the grades about flexibility of use. CBCTM can be employed to install new linings with difficult profiles and on the roofs too using few simple lining tools. Recommended CBCTM lining thickness depends on the job requirements and application conditions. The thickness of the lining can be recommended after technical evaluation of BMW at the lining site. Curing time of CBCTM series of compounds is 48 hours.
| PRODUCT | DESCRIPTION | DATASHEET |
| CBC 100 | CBC 100 provides moderate wear protection against high erosive wear at temperatures up to 110°C. | Download |
| CBC 500 | CBC 500 provide excellent protection against high erosive wear at temperatures up to 400°C. | Download |
| CBC 900 | CBC 500 provide excellent protection against high erosive wear at temperatures up to 1000°C. | Download |
Application areas of equipment and system components lined with CBC:

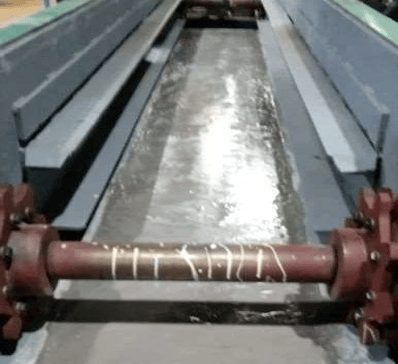

1. Drag Chain Conveyors;

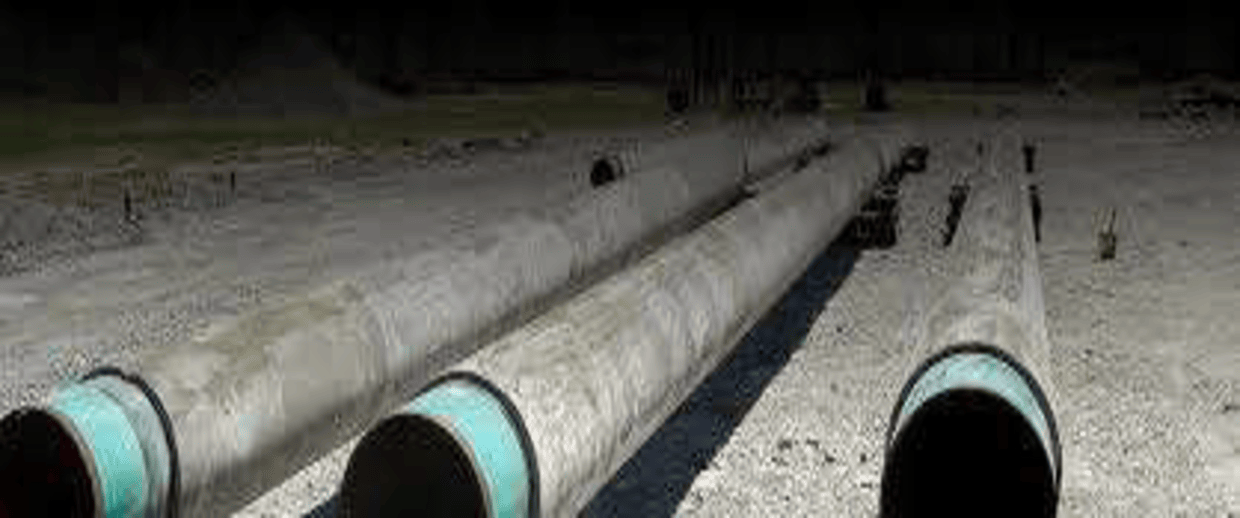

2. Pneumatic Conveying systems for Coal, Cement and Slag
3. Dust Extraction Equipment; Hydro Cyclones, Cyclones.

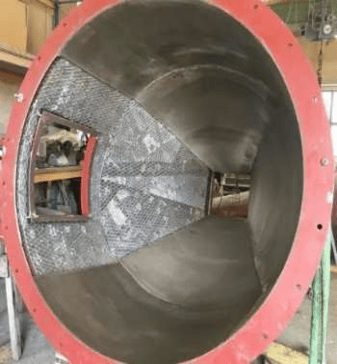

4. Grinding Mill internal lining for Classifier, mill body and difficult shapes.
5. Static and Dynamic Separators; Chutes etc.
